Key Features
Continuous Power 1000W
Efficiency (Approx.) 92% Typically
Certification 80 Plus Gold
Fan Size 135mm
Input
Voltage 100-240 VAC ±10%
Frequency Range 50Hz-60Hz
Current 13A-6.5A
Output
Modular Type Fully Modular
Total Power 1000W
Connector
Main Power 1 x MB 24(20+4) Pin
CPU 2 x 8(4+4) Pin EPS 12V
PCI-E 8 x 8(6+2) Pin
SATA 12
Molex 6
Floppy 1
Warranty Information
Manufacturing Warranty 10 years

Description

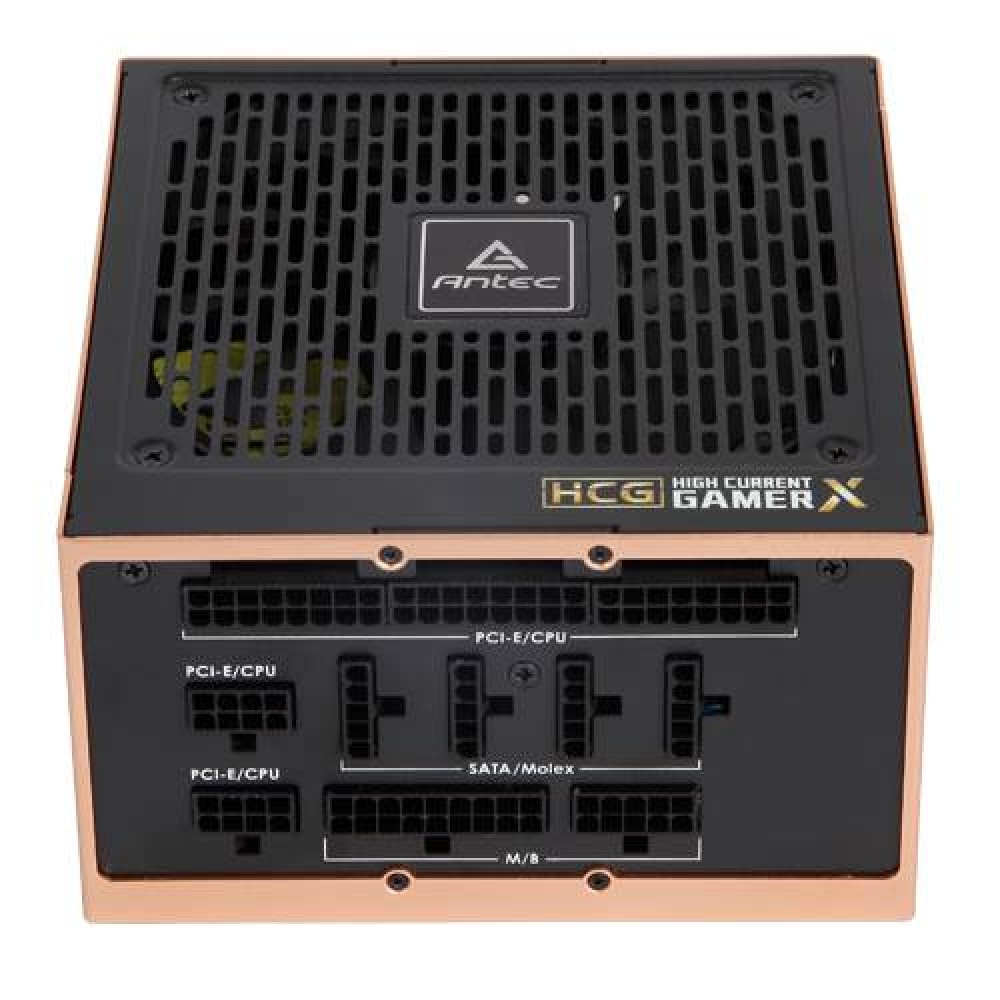

Guaranteed 1000W of Continuous Power from Antec
100% Modular Improves airflow and reduces clutter
80 PLUS GOLD certified Up to 92% efficient, to reduce your electricity bill
PhaseWave Design A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
16-pin Socket Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
Antec Quality 10-year warranty and lifetime global 24/7 support
135mm FDB Silence Whisper-quiet high-quality fluid-dynamic bearing fan with a long lifetime
Zero RPM Manager An advanced low-voltage fan control with a fan-off mode at low loads for absolute silence
99%+12V - Output for maximum CPU & GPU support
CircuitShield Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your systemâ€™s performance
28(18+10) pin MBU socket - For possible future MBU connectors
ATX12V 2.4 Engineered according to the newest PSU guideline and compatible with the latest CPU generation
HCG Extreme delivers non-stop industrial-class performance for high-end computer systems at up to 50°C ambient.
