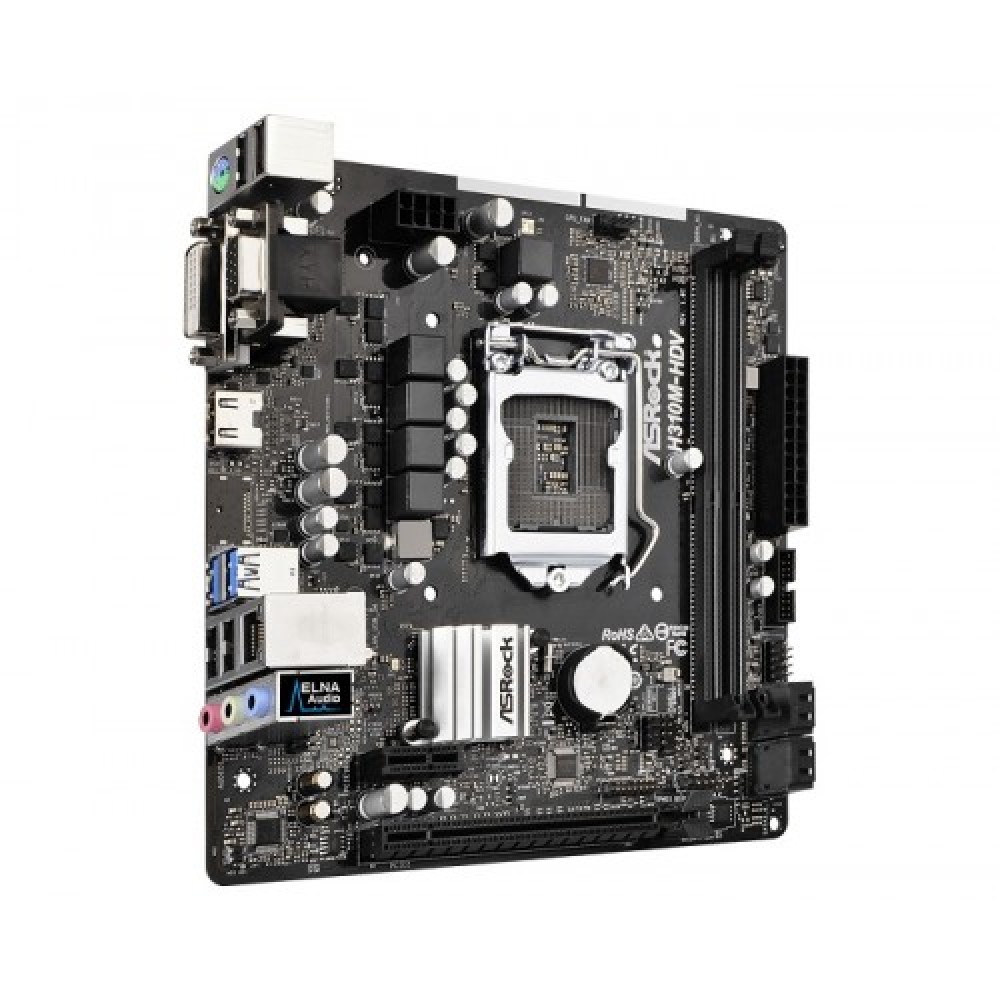

Supports 8th Generation IntelÂ® Coreâ„¢ Processors (Socket 1151), Supports DDR4 2666, 1 PCIe 3.0 x16, 1 PCIe 2.0 x1, Graphics Output Options: DVI-D, D-Sub, HDMI, 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps, 4 SATA3, 4 USB 3.1 Gen1 (2 Front, 2 Rear), Supports Full Spike Protection

Basic Information
Basic Information	Supported CPU - Supports 8th Generation Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - 5 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology Chipset Intel® H310 BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.05V Voltage Multi-adjustment Form Factor - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design
Memory Specifications
Memory Specifications	Type Dual Channel DDR4 Memory Technology Slots 2 x DDR4 DIMM Slots Supported Memory Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Maximum Memory 32 GB
Expansion Slots
Expansion Slots	PCI - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x1 Slot
Graphics Specifications
Graphics Specifications	Graphics - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port
Connector & Ports

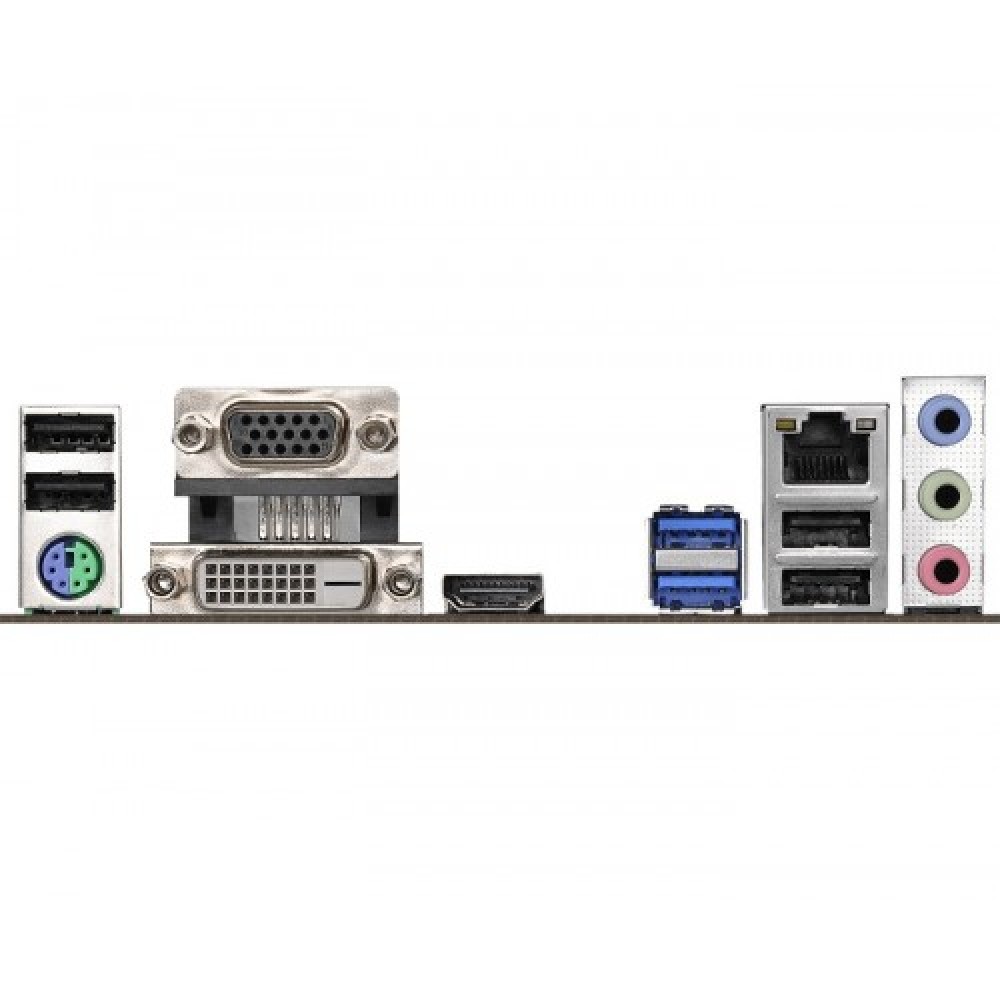

Connector & Ports	HDMI - 1 x HDMI Port USB (s) - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) LAN Port (s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug Audio 1 x Front Panel Audio Connector - HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Warranty
Warranty	Manufacturing Warranty 03 years
