Product Description:-

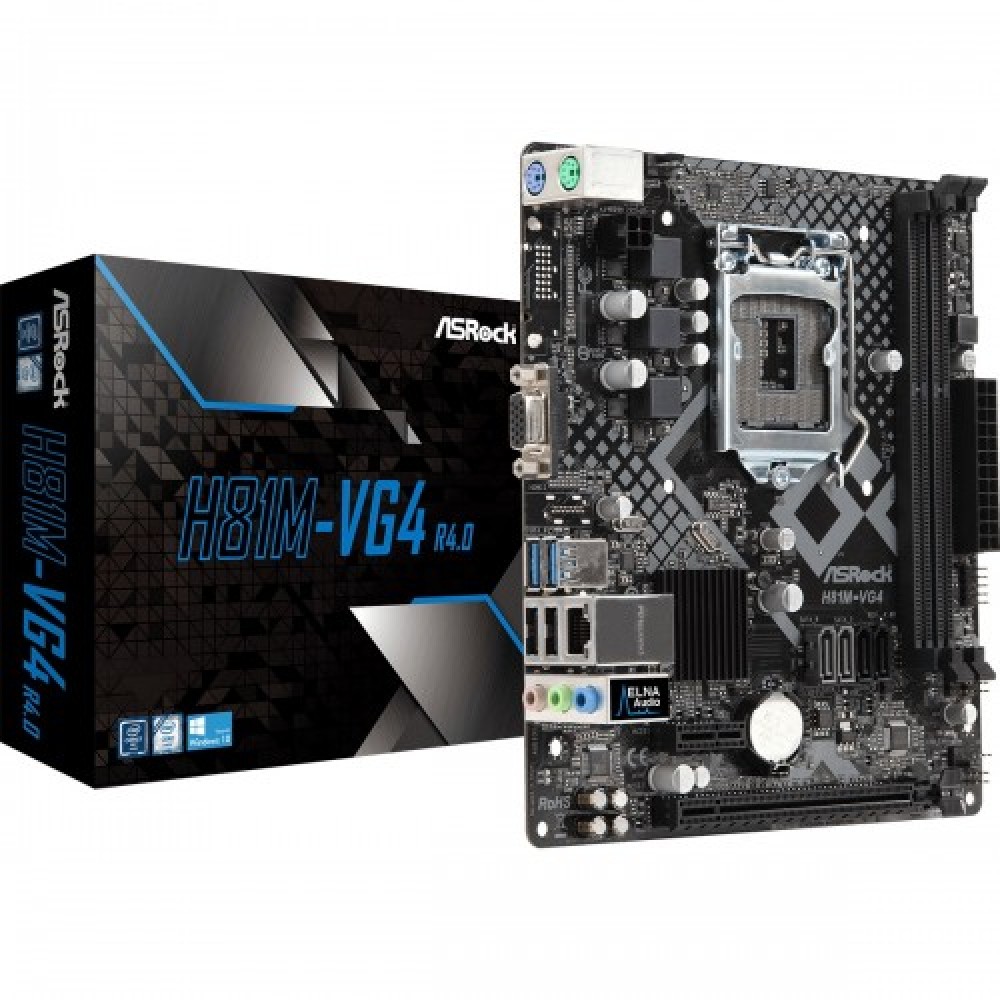

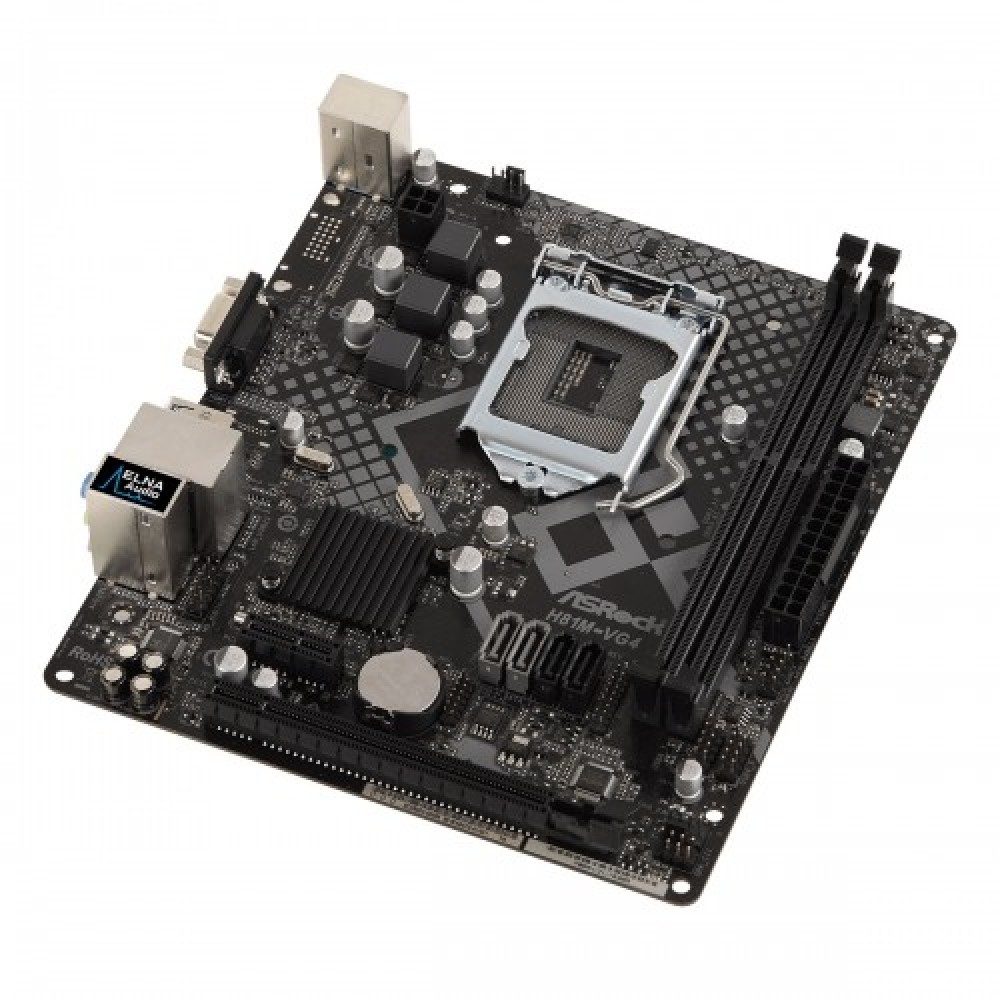

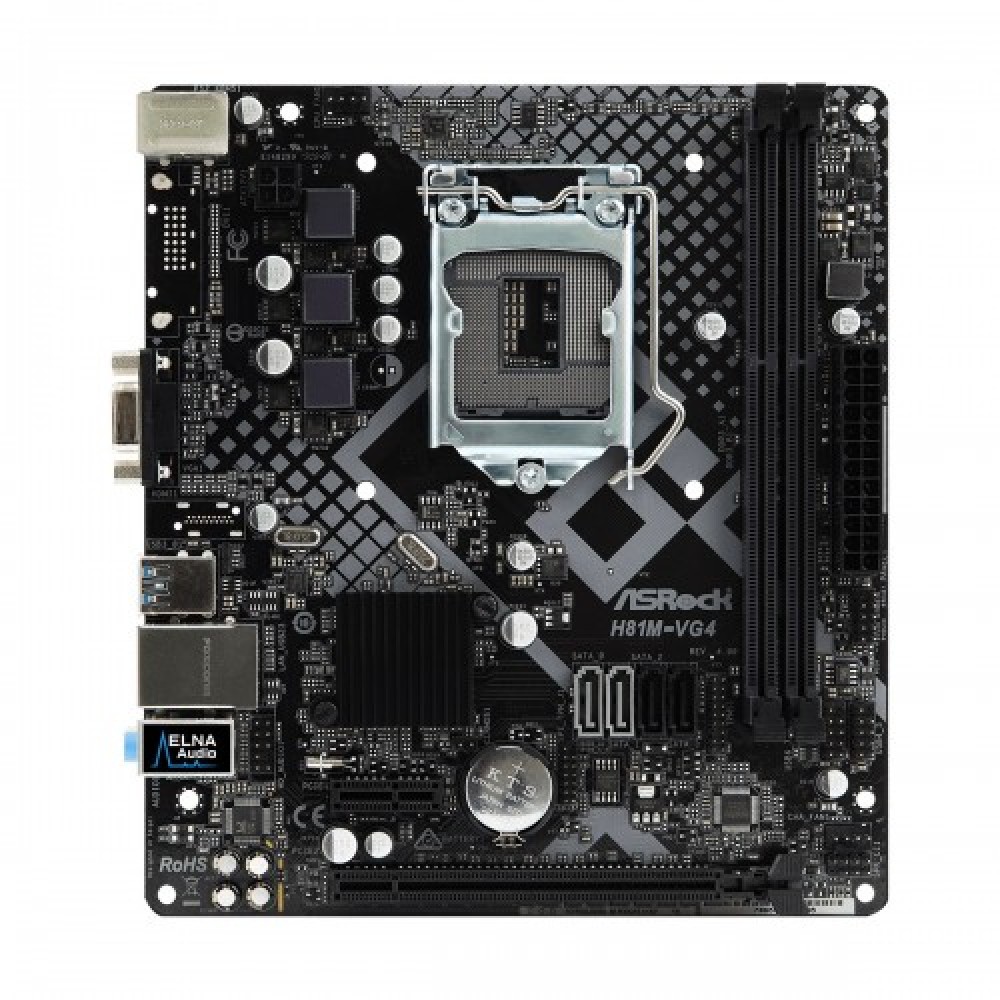

ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard

The ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard supports Intel 4th Generation Intel Core Processors (Socket 1150) and Dual Channel DDR3 1600. The Motherboard comes with 1 PCIe 2.0 x16, 1 PCIe 2.0 x1. It features a D-Sub port for graphic output. It is built with a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections. The ASRock H81M-VG4 R4.0 features a solid capacitor design. The motherboard offers full spike protection. It includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. It also comes with ASRock Live Update & APP Shop. The ASRock H81M-VG4 R4.0 comes with 3 years of warranty.

Basic Information
Supported CPU	Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150) Supports Intel Turbo Boost 2.0 Technology
Chipset	Intel H81
BIOS	32Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 support CPU, DRAM Voltage multi-adjustment
Audio	HD Audio Jack: Line in / Front Speaker / Microphone
Form Factor	Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm Solid Capacitor design
Memory Specifications
Type	Dual Channel DDR3/DDR3L Memory Technology
Slots	2 x DDR3/DDR3L DIMM Slots
Supported Memory	Supports DDR3/DDR3L 1600 / 1333/1066 non-ECC, un-buffered memory
Maximum Memory	16GB
Expansion Slots
PCI	1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x1 Slot
Graphics Specifications
Max Shared Memory	1024MB
Graphics Type	Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Network & Wireless Connectivity
LAN	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Storage
Storage type	2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

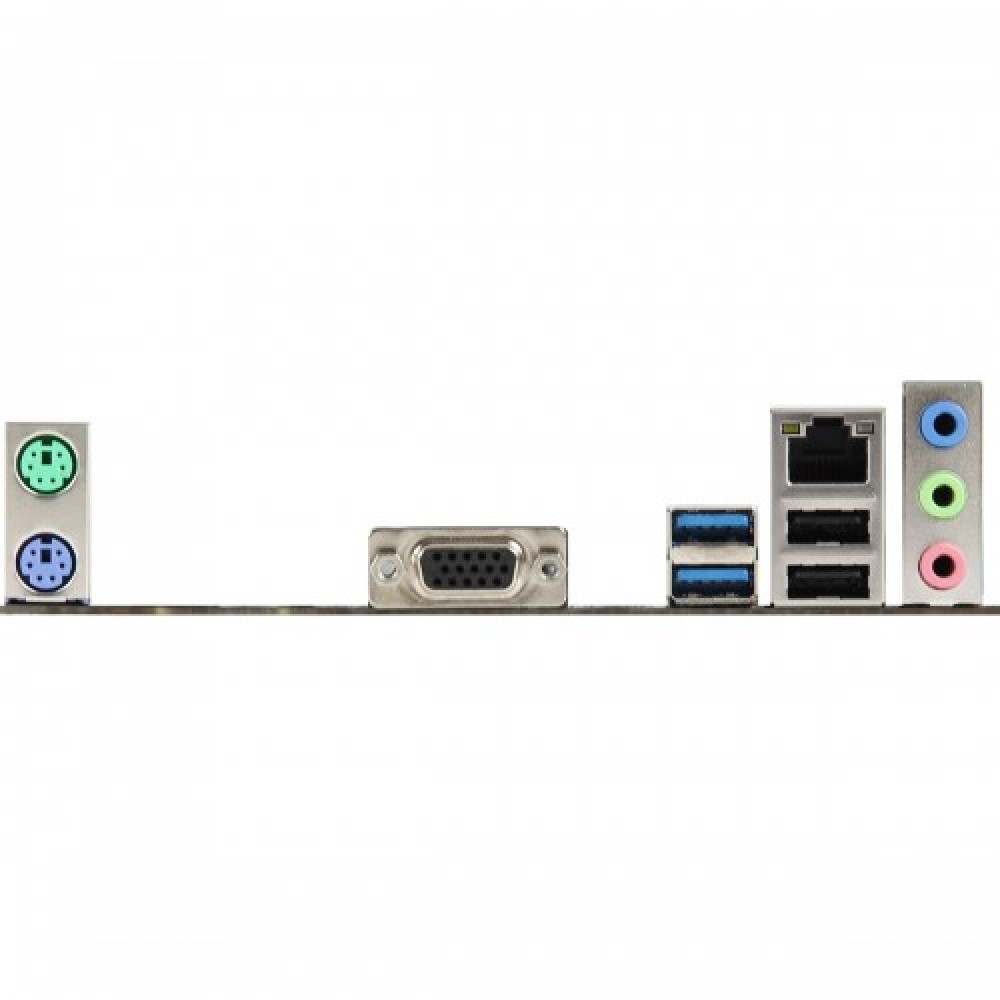

Ports, Connectors & Slots
USB 2 Port	2 x USB 2.0 Ports (Supports ESD Protection)
D-Sub	1 x D-Sub Port
USB 3 Port	2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Internal I/O Ports	1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x TPM Header 1 x SPI TPM Header
Warranty
Warranty	3 years
