MaxGreen MGO-PX1K 1 KVA Online UPS has Input Nominal input voltage 220VAC ,Voltage Range 110V~300V Halfload 176V~300V Full load, Frequency Range 40~70Hz,Power Factor 0.99@Full Load. Output voltage 220VAC,Voltage Regulation 1%, Frequency(Sync.Mode) 47Hz~53Hz. Frequency(Bat.Mode) 50Hz+/-0.05Hz ,Output THDv 2% linear Load 6% Non-Linear Load ,Waveform Pure Sinewave. Transfer Time Line Mode--Bat Mode 0ms, Inv--Bypass Mode <4ms. Efficiency AC-AC 89% ,ECO 94% ,Battery Mode 88%. Battery & Charger Voltage/Capacity 3X12V/7AH. Battery Type Value Regulated Maintenance Free Lead Acid(VRLA) for standard Model with internal battery.Recharge Time ~5Hours.Max recharge current 1.5A. Floating charge Voltage 27.3V. Display LCD, Buzzer Alarm Bat.Mode/Bat.Low/Overload/Fault. Dimension 145(W)X220(H)X328(L)mm. Weight 10.8 kg. Environment Humidity 5~97%(Non Condensing) .Operating Ambient Temperature 0~40℃. Communication Port S 232/SNMP(opion)/USB(option).
| Main Features | |
| Main Features | Capacity 1KVA/900W Input Voltage 220VAC Output Voltage 220VAC Frequency (Battery Mode) 50Hz+/-0.05Hz Battery Battery Type Value Regulated Maintainance Free Lead Acid(VRLA) for standard Model with internal battery Battery Voltage/Capacity 3X12V/7AH Recharge Time ~5Hours Max recharge current 1.5A Floating charge Voltage 27.3V |
| Input Devices | |
| Input Features | Frequency 40~70Hz Power Factor 0.99@Full Load Voltage Range 110V~300V Halfload 176V~300V Full load |
| Warranty | |
| Warranty | Warranty 01 Year |

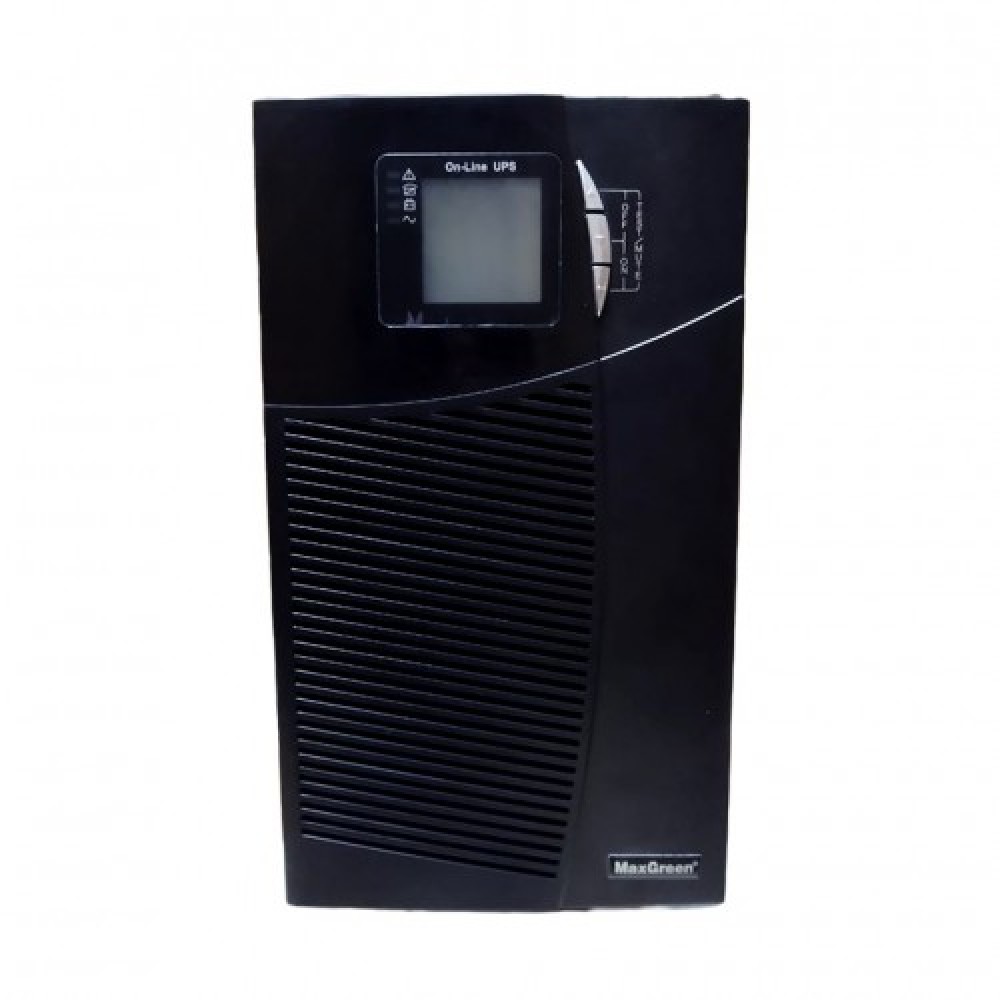

MaxGreen MGO-S1K(PX1K) 1 KVA Online UPS
- Brand: UPS
- Product Code:MaxGreen MGO-S1K(PX1K) 1 KVA
- Availability:In Stock
- Tk22,000.00
-
Tk21,400.00
